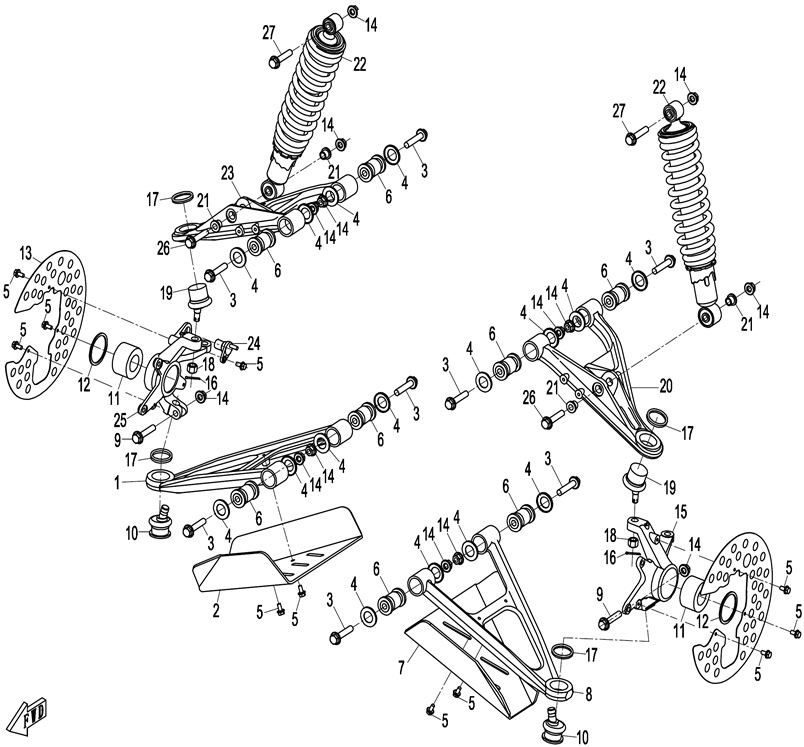

1. FRONT RIGHT ARM (LOWER) | CF500K-16-12
3. BOLT M10x1.25×70 | CF500K-16-18
4. CAP, BUFFERING COLLAR | CF500K-16-15
5. BOLT M6x12 | CF500EDK-05-20
6. BUFFERING COLLAR | CF500K-16-14
8. FRONT LEFT ARM (LOWER) | CF500K-16-24
10. BOTTOM BALL PIN | CF500K-16-13
11. BEARING, HUB | CF500K-16-10
12. CIRCLIP | CF500K-16-7
14. NUT M10x1.25 | CF500K-16-2
15. STEERING KNUCKLE, LH | CF500K-16-23
18. SLOT NUT M10x1.25
19. TOP BALL PIN | CF500K-16-5
20. FRONT LEFT ARM (UPPER) | CF500K-16-22
21. SPACER, SHOCK ABSORBER | X8K-05-21
22. FRONT SHOCK ABSORBER | X8K-05-22
23. FRONT RIGHT ARM (UPPER) | CF500K-16-3
24. SPEED SENSOR | X8K-05-24
25. STEERING KNUCKLE, RH | X8K-05-25
26. BOLT M10x1.25×50 | CF500K-16-21
26. BOLT M10x1.25×70 | CF500K-16-18
27. BOLT M10x1.25×50 | CF500K-16-21
| del | 1, 10, 11, 12, 14, 15, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 3, 4, 5, 6, 8 |
|---|
