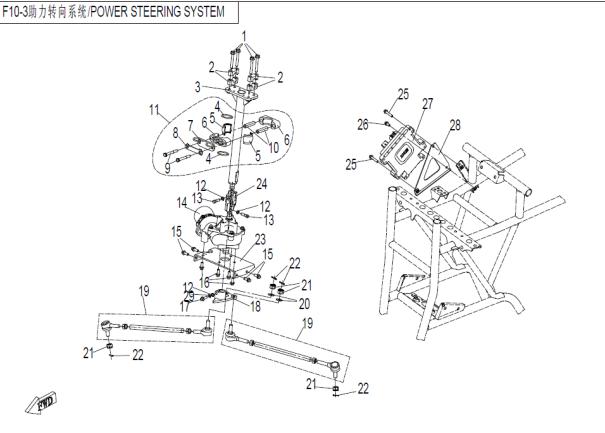

1. BOLT M8x55 | CF550K-10-3-1
2. ALUM COVER, HANDLEBAR | CF500K-9-5
3. EPS STEERING STEM ASSY | X8EPS-10-3-3
11. BUSHING, STEERING STEM | CF550K-10-3-28
12. WASHER | CF550K-10-3-23
13. BOLT M8x30 | CF550K-10-3-11
14. EPS DRIVER | CF550K-10-3-13
14-1. EPS DRIVER (New Model) | CF550K-10-3-13-1
15. BOLT M8x25 | CF550K-10-3-15
16. BOLT M10x20 | CF550K-10-3-16
17. BOLT M8x35 | CF550K-10-3-19
18. EPS STEERING ARM ASSY | X8EPS-10-3-18
19. STEERING TIE-ROD COMP | CF500K-9-23
20. WASHER | CF550K-10-3-20
21. NUT M10x1.25 | CF500K-9-18
22. COTTER PIN | CF550K-10-3-22
23. EPS MOTOR MOUNTING PLATE | X8EPS-10-3-23
24. UNIVERSAL JOINT, STEERING STEM | CF550K-10-3-12
25. BOLT M6x30 | CF550K-10-3-26
27. EPS CONTROLLER | X8EPS-10-3-27
28. PLATE EPS CONTROLLER | X8EPS-10-3-28
14. EPS DRIVER | CF550K-10-3-13 14-1. EPS DRIVER (New Model) | CF550K-10-3-13-1
| del | 1, 10, 11, 12, 13, 13-1, 14, 14-1, 15, 16, 17, 18, 19, 2, 20, 21, 22, 23, 24, 25, 26, 27, 28, 3, 4, 5, 6, 7, 8, 9 |
|---|
