14. Styresystem / EX

Varenummer: SS1424
(0)
29,00 kr inkl. MVA
På lager
Sendes vanligvis innen 24 timer

Klar til bruk rett ut av esken!

Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!

Har du spørsmål?

Ta gjerne kontakt

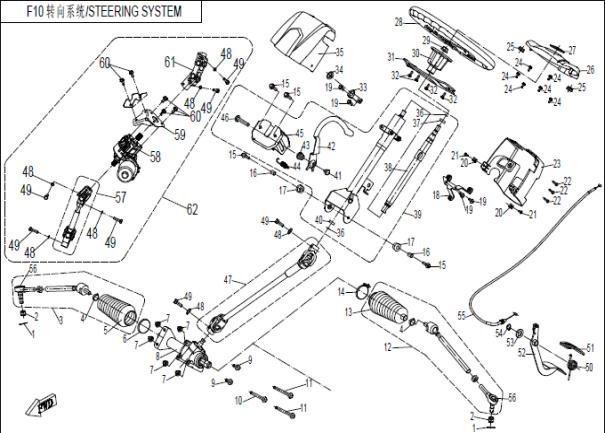

1. COTTER PIN | U8K-14-1
2. NUT M10x1.25 | U8K-14-2
3. TIE ROD, RH | U8K-14-3
3-1. TIE ROD, RH | U8EX-14-3
4. CLIP| U8K-14-4 | U8K-14-4
5. JACKET OF JOINT -R | U8K-14-5
6. TIE BAND | U8K-14-6
7. NUT M8 | U8K-14-7
8. STEERING MOTOR | U8K-14-8
9. BOLT M8x20 | U8K-14-9
10. BOLT M8x75 | U8K-14-10
11. BOLT M8x90 | U8K-14-11
12. TIE-ROD, LH | U8K-14-12
12-1. TIE-ROD, LH | U8EX-14-12
13. JACKET OF JOINT -L | U8K-14-13
14. A-TYPE CLAMP 50-70 | U8K-14-14
15. BOLT M8x25 | U8K-14-15
16. METAL BUSHING | U8K-14-16
17. NYLON BUSHING | U8K-14-17
18. BRACKET, STEERING COVER | U8K-14-18
19. BOLT M6x12 | U8K-14-19
20. CLAMP | U8K-14-20
21. TAPPING SCREW ST4.2x13 | U8K-14-21
22. SCREW M5x16 | U8K-14-22
23. REAR COVER, STEERING COLUMN | U8K-14-23
24. BOLT M5x16 | U8K-14-24
25. RUBBER COLLAR | U8K-14-25
26. UPPER COVER, STEERING | U8K-14-26
27. CFMOTO LOGO 58x49 | U8K-14-27
28. STEERING WHEEL | U8K-14-28
29. NUT M12x1.25 | U8K-14-29
30. FIXING SEAT, STEERING WHEEL | U8K-14-30
31. BOTTOM COVER, STEERING | U8K-14-31
32. SCREW M6x16 | U8K-14-32
33. UPPER BRACKET, STEERING | U8K-14-33
34. FIXING RUBBER BUSH | U8K-14-34
35. FRONT COVER, STEERING COLUMN | U8K-14-35
36. RETAINER 20 | U8K-14-36
37. BEARING, BALL | U8K-14-37
38. STEERING ROD | U8K-14-38
39. STEERING COLUMN ASSY. | U8K-14-39
40. BEARING, BALL | U8K-14-40
41. LOCK NUT | U8K-14-41
42. LOCK ARM | U8K-14-42
43. ADJUST NUT | U8K-14-43
44. RETURN SPRING, LOCK | U8K-14-44
45. BRACKET LOCK | U8K-14-45
46. SHAFT PIN | U8K-14-46
47. UNIVERSAL SHAFT, STEERING | U8K-14-47
48. WASHER | U8K-14-48
49. BOLT M8x30 | U8K-14-49
50. SPRING THROTTLE | U8K-14-50
51. RUBBER BUSH, THROTTLE PEDAL | U8K-14-51
52. PEDAL THROTTLE | U8K-14-52
53. WASHER | U8K-14-53
54. RETAINER 14 | U8K-14-54
55. CABLE THROTTLE | U8K-14-55
56. BALL PIN | U8K-14-56
58. EPS DRIVER UTV 550/800 | U8K-14-58
