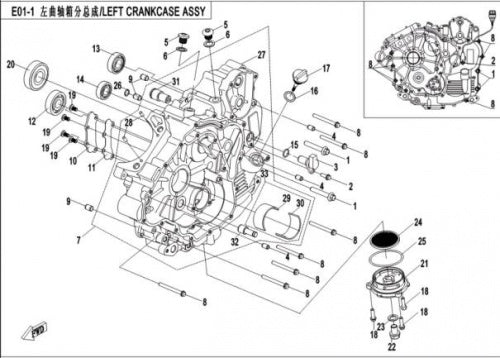

E01-1 Venstre Veivhus
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt
1. BOLT M8X50 | CF450M-1-1-1
2. BOLT M6X16 | CF450M-1-1-2
3. SPEED SENSOR | CF550M-1-1-3
4. DOWEL PIN Φ8X14 | CF550M-1-1-4
5. BOLT M14X1.5X12 | CF550M-1-1-5
6. WASHER 14 | CF550M-1-1-6
7. LEFT CRANKCASE ASSY | CF550M-1-1-7
8. BOLT M6X60 | CF450M-1-1-8
9. DOWEL PIN Φ10x14 | CF550M-1-1-9
10. OIL COVER PLATE | CF550M-1-1-10
11. PAPER WASHER | CF550M-1-1-11
12. BEARING 6202 | CF550M-1-1-12
13. BEARING 6203 | CF550M-1-1-13
14. BEARING | CF550M-1-1-14
15. O-RING 13X2 | CF550M-1-1-15
16. O-RING 18x3.55 | CF550M-1-1-16
17. DIPSTICK, ENGINE OIL | CF550M-1-1-17
18. BOLT M6X20 | CF450M-1-1-18
19. BOLT M6x12 | CF550M-1-1-19
20. ROLLING BEARING | CF550M-1-1-20
21. PLATE, OIL STRAINER | CF550M-1-1-21
22. DRAIN BOLT M12X1.5 | CF450M-1-1-22
23. WASHER 12 | CF550M-1-1-23
24. OIL STRAINER | CF550M-1-1-24
25. O-RING 63X2.5 | CF550M-1-1-25
26. O-RING | CF550M-1-1-26
27. LEFT CRANKCASE MARK A | CF450M-1-1-27
27-1. LEFT CRANKCASE MARK B | CF450M-1-1-27-1
28. NEEDLE PIN P5X11.8 | CF550M-1-1-28
31. NTERMEDIATE GEAR, REVERSE | CF550M-1-1-31
32. SHAFT, DUAL GEAR, OIL PUMP | CF550M-1-1-32
33. BEARING SLEEVE COMP | CF550M-1-1-33-1
33-1. BEARING SLEEVE COMP | CF550M-1-1-33-2
