E01-2 Høyre Veivhus
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

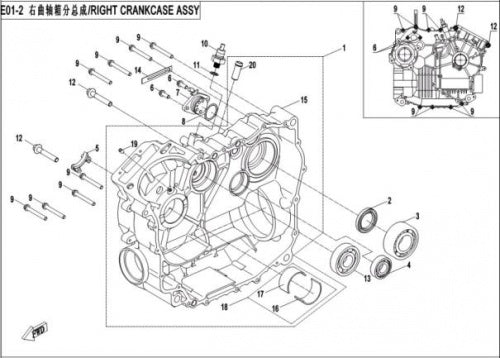

1. RIGHT CRANKCASE ASSY | CF550M-1-2-1
2. OIL SEAL 30X45X7 | CF550M-1-2-2
3. BEARING 3206A | CF550M-1-2-3
4. BEARING 6203 | CF550M-1-1-13
5. UPPER GUIDE, TIMING CHAIN | CF550M-1-2-5
6. BOLT M6X16 | CF450M-1-2-6
7. SENSOR, GEARSHIFT | X8M-03-18
8. O-RING 24X2.5 | CF550M-1-2-8
9. BOLT M6X50 | CF450M-1-2-9
10. SWITCH, OIL PRESSURE | CF550M-1-2-10
11. WASHER 10 | CF550M-1-2-11
12. BOLT M8X50 | CF450M-1-1-1
13. BEARING 63/22 | CF500M-2-4
14. WIRE CLAMP | CF550M-1-2-15
15. RIGHT CRANKCASE MARK A | CF450M-1-2-15
15-1. RIGHT CRANKCASE MARK B | CF450M-1-2-15-1
18. BEARING SLEEVE COMP | CF550M-1-1-33-1
18-1. BEARING SLEEVE COMP | CF550M-1-1-33-2
19. NIPPLE | CF550M-1-2-20
20. JOINT, BREATHER HOSE | CF550M-1-2-21
