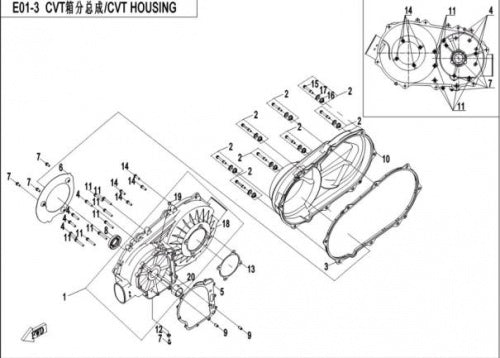

E01-3 CVT Hus
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt
1. CVT CASE ASSY | CF550M-1-3-1
2. BOLT COMP | X8M-08-06
3. SEAL RING, 'CVT COVER | CF550M-1-3-3
4. BOLT M6X30 | CF450M-1-3-4
5. PAPER GASKET, CVT CASE | CF550M-1-3-5
6. PLATE, AIR INTAKE | CF550M-1-3-6
7. BOLT M6X12 | CF450M-1-3-7
8. OIL SEAL 32X55X10 | CF550M-1-3-8
9. PIN DOWEL Φ8×14 | CF550M-1-1-4
10. CVT COVER | CF550M-1-3-10
11. BOLT M6X40 | CF450M-1-3-11
12. WASHER 6 | CF550M-1-3-12
13. GASKET 2, CVT CASE | X8M-03-20
14. BOLT M6X20 | CF450M-1-1-18
15. BOLT,CYLINDER HEAD COVER | CF450M-1-3-15
16. WASHER,RUBBER | CF450M-1-3-16
17. CAP, RUBBER | CF450M-1-3-17
18. CVT CASE | CF450M-1-3-20-1
19. SCREW | CF550M-1-3-19
20. PLAIN BEARING,CVT CASE | CF450M-1-3-20-1
20-1. PLAIN BEARING,CVT CASE | CF450M-1-3-20-2
