E02 Venstre Veivhus
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

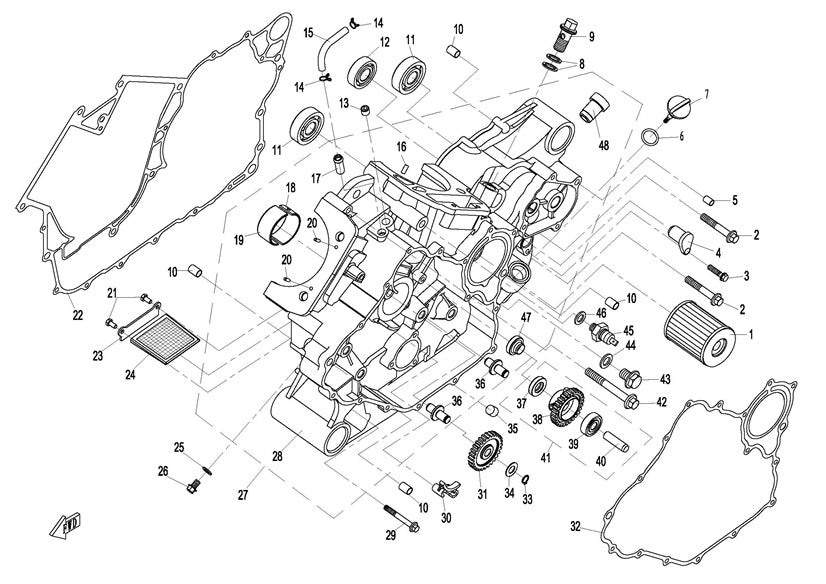

1. OIL FILTER, ENGINE | X8M-02-01
2. BOLT M8x50 | CF500M-3-5
3. BOLT M6x16 | CF500M-1-12
4. PLUG, SEAL | X8M-02-04
5. DOWEL PIN 8x14 | CF500M-6-Ch-25
6. O-RING 18x3.55 | CF500M-1-15
7. DIPSTICK, ENGINE OIL | CF500M-1-16
8. WASHER 14 | CF500M-6-2
9. BOLT M14x1.5 | CF500M-1-22
10. DOWEL PIN 10x14 | CF500M-2-18
11. BEARING 6303 17x47x14 | CF500M-1-18
12. BEARING 6203LU | CF500M-2-5
14. CLIP, BREATHER HOSE | CF500M-16-16
16. NIPPLE | X8M-02-16
17. JOINT, BREATHER HOSE | CF500M-2-14
18. BEARING SLEEVE | X8M-02-18-RED
18-1. BEARING SLEEVE | X8M-02-18-BLUE
19. BEARING SLEEVE | X8M-02-19-RED
19-1. BEARING SLEEVE | X8M-02-19-BLUE
21. BOLT, RETAINING PLATE | CF500M-4-12
22. GASKET, CRANKCASE | X8M-02-22
24. OIL STRAINER | X8M-02-24
26. BOLT M8x12.5, FLANGE | CF500M-26-2
27. LEFT CRANKCASE ASSY | X8M-02-27-RED
27-1. LEFT CRANKCASE ASSY | X8M-02-27-BLUE
29. BOLT M6x50 | CF500M-4-6
30. LOWER GUIDE, TIMING CHAIN | X8M-02-30
31. IDLE GEAR, BREATHER | X8M-02-31
32. GASKET, LEFT CRANKCASE COVER | X8M-02-32
40. SHAFT, BREATHER | X8M-26-15
41. BREATHER ASSY | X8M-02-41
43. DRAIN BOLT, M12x1.5 | CF500M-1-4
44. WASHER 12 | CF500M-1-5
45. SWITCH, OIL PRESSURE | X8M-02-45
46. WASHER 10 | CF500M-2-8
47. SEAT BREATHER | X8M-02-47
48. SLEEVE, GEARSHIFT | X8M-02-48
