E03 Høyre Veivhus
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

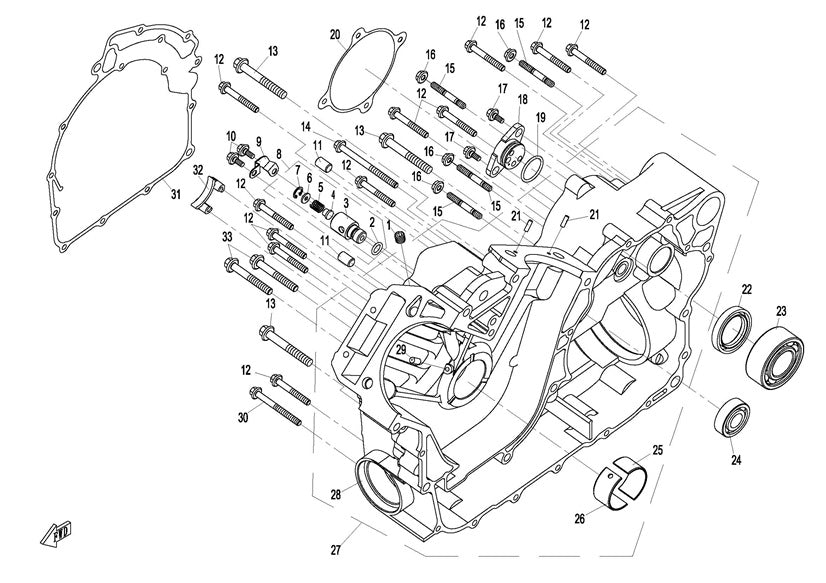

2. O-RING 10x2.3 | CF500M-15-1
4. OIL PLUG, RELIEF VALVE | CF500M-15-3
5. SPRING, RELIEF VALVE | CF500M-15-4
6. RETAINER | CF500M-15-5
8. RELIEF VALVE | X8M-03-08
9. PRESSURE STRIP, RELIEF VALVE | CF500M-15-7
10. BOLT M6x12 | CF500M-6-21
11. DOWEL PIN Φ10x14 | CF500M-2-18
12. BOLT M6X45 | CF500M-3-24
14. BOLT M6x80 | CF500M-1-6
17. BOLT M6x16 | CF500M-1-12
18. SENSOR, GEARSHIFT | X8M-03-18
19. O-RING 24x2.5 | CF500M-7-6
20. GASKET, CVT CASE (2) | X8M-03-20
22. OIL SEAL 30x45x7 | CF500M-2-7
24. BEARING 6203LU | CF500M-2-5
27. RIGHT CRANKCASE ASSY | X8M-03-27-RED
27. RIGHT CRANKCASE ASSY | X8M-03-27-BLUE
29. NIPPLE | X8M-02-16
30. BOLT M6x50 | CF500M-4-6
31. GASKET, CVT CASE (1) | X8M-03-31
33. BOLT M8x50 | CF500M-3-5
