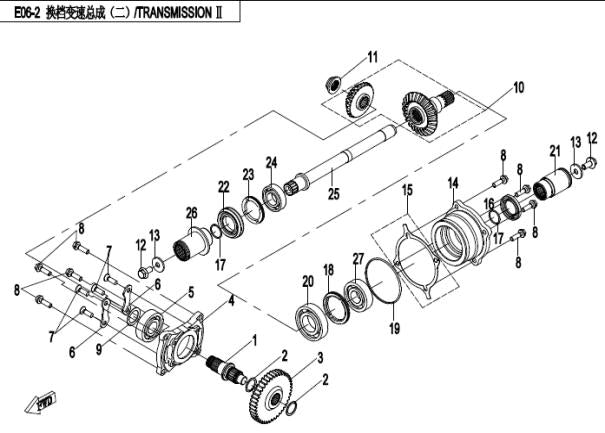

E06-2 Overføringsdeler 2
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt
1. SHAFT, DRIVE BEVEL GEAR | CF550M-6-2-1
2. RETAINER 25 | CF550M-6-1-6
3. OUTPUT DRIVEN GEAR | CF450M-6-2-3
4. BEARING SEAT, DRIVE BEVEL GEAR | CF450M-6-2-4
5. BEARING | CF550M-6-2-5
6. BEARING LIMIT | CF550M-6-2-6
7. SCREW M8x25 | CF550M-6-2-7
8. BOLT M8x28 | CF550M-6-2-8
9. ADJUST SHIM | CF550M-6-2-9
10. DRIVE & DRIVEN BEVEL GEAR COMP. | CF550M-6-2-10
11. LOCKNUT, BEVEL GEAR | CF550M-6-2-11
12. BOLT M10x1.25x20 | CF550M-6-2-12
13. WASHER 10x27.5x4 | CF550M-6-2-13
14. BEARING SEAT, DRIVEN BEVEL GEAR | CF550M-6-2-14
15. ADJUST SHIM, DRIVEN BEVEL GEAR | CF550M-6-2-15
16. OIL SEAL 35x50x7 | CF550M-6-2-16
17. O-RING 25x2 | CF550M-6-2-17
18. STOPPER NUT, BEARING | CF550M-6-2-18
19. O-RING 88x2.5 | CF550M-6-2-19
20. BEARING | CF550M-6-2-20
21. DRIVE SLEEVE, ENGINE
22. OIL SEAL 35x61x9 | CF550M-6-2-22
23. BEARING RETAINER, FRONT OUTPUT SHAFT | CF550M-6-2-23
24. BEARING | CF550M-6-2-24
25. FRONT OUTPUT SHAFT | CF550M-6-2-25
26. SLEEVE, FRONT OUTPUT | CF450M-6-2-26
27. BEARING BALL | CF550M-6-2-27
