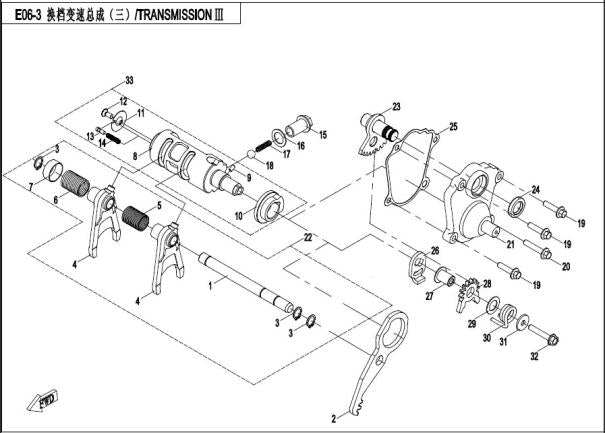

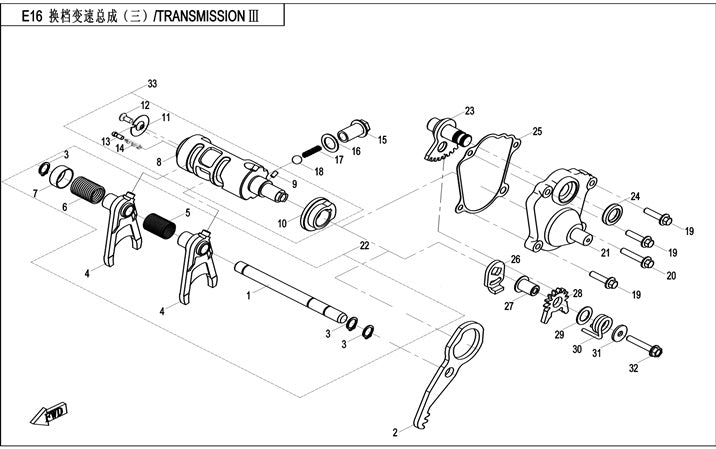

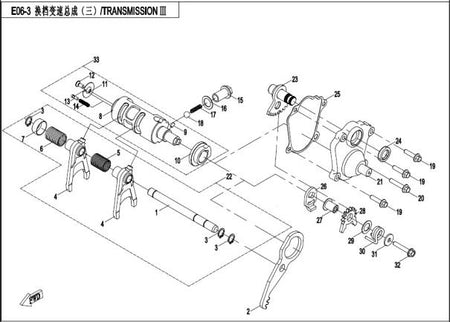

E06-3 Overføringsdeler 3

Varenummer: E063OD
(0)
19,00 kr inkl. MVA
På lager
Sendes vanligvis innen 24 timer

Klar til bruk rett ut av esken!

Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!

Har du spørsmål?

Ta gjerne kontakt

  1. SHAFT SHIFT, FORK | CF450M-6-3-1
  2. ROCKER ARM, PARKING | CF550M-6-3-2
  3. RETAINING RING 12 | CF450M-6-3-3
  4. SHIFT FORK | CF550M-6-3-4
  5. SPRING, SHIFT FORK | CF450M-6-3-5
  6. SPRING, SHIFT FORK | CF450M-6-3-6
  7. SPRING GUIDE | CF450M-6-3-7
  8. SHIFT DRUM | CF450M-6-3-8
  9. PIN SHAFT | CF450M-6-3-9
  10. CAM, PARKING | CF450M-6-3-10
  11. LIMIT WASHER | CF450M-6-3-11
  12. FASTEN SCREW T25 | CF450M-6-3-12
  13. GEAR CONTACTOR | CF450M-6-3-13
  14. SPRING, GEAR CONTACTOR | CF450M-6-3-14
  15. BOLT M14x1.5 | CF550M-6-3-15
  16. WASHER 14x22x1 | CF550M-6-3-16
  17. SPRING, LIMIT | CF550M-6-3-17
  18. FRICTION BALL | CF550M-6-3-18
  19. BOLT M6x25 | CF550M-6-3-19
  20. BOLT M6x32 | CF550M-6-3-20
  21. COVER, GEARSHIFT | CF550M-6-3-21
  22. SHIFT FORK COMP. | CF550M-6-3-22
  23. GEAR, DRIVE SECTOR | CF550M-6-3-23
  24. OIL SEAL SD15x25x5 | CF550M-6-3-24
  25. GASKET, SECTOR GEAR HOUS | CF500M-14-34
  26. WASHER, DRIVEN SECTOR GEAR | CF550M-6-3-26
  27. SHAFT, DRIVEN SECTOR GEAR | CF550M-6-3-27
  28. DRIVEN SECTOR GEAR | CF550M-6-3-28
  29. WASHER 13.5x22x1 | CF550M-6-3-29
  30. TORSION SPRING, DRIVEN SECTOR GEAR | CF550M-6-3-30
  31. WASHER 6.6x20x2 | CF550M-6-3-31
  32. BOLT M6x35 | CF550M-6-3-32
  33. SHIFT DRUM COMP | CF550M-6-3-33
