E24 Girkasse 3
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

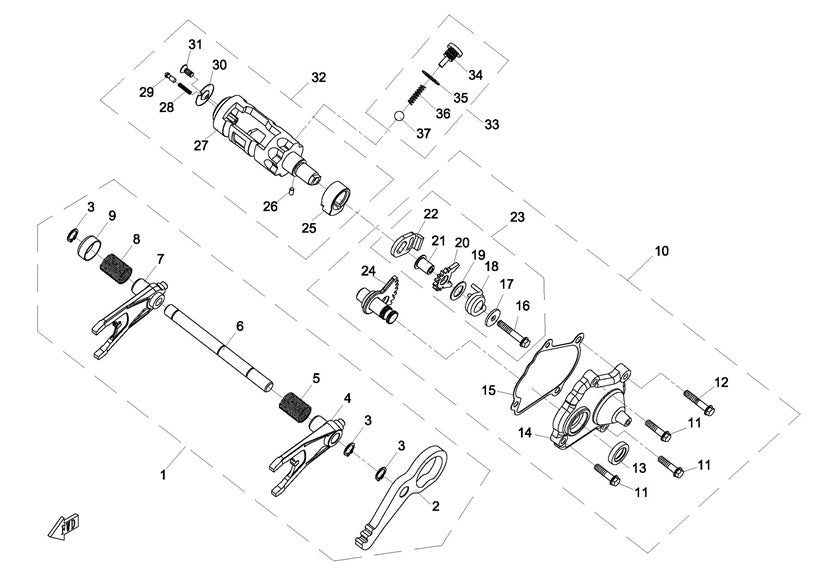

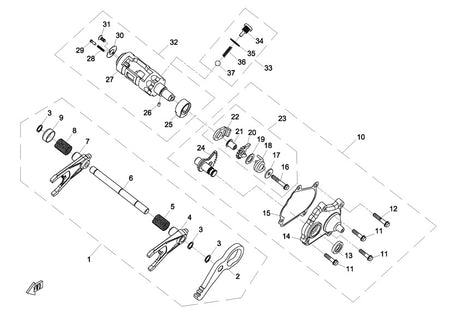

1. SHIFT FORK COMP. | X8M-24-01
2. ROCKER ARM, PARKING | X8M-24-02
5. FORK SPRING, THIN | CF500M-14-3
8. FORK SPRING, THICK | CF500M-14-6
9. SPRING SEAT | CF500M-14-7
10. SECTOR GEAR COMP. GEARSHIFT | X8M-24-10
11. BOLT M6x25 | CF500M-7-11
12. BOLT M6x32 | CF500M-4-5
13. OIL SEAL SD15x25x5 | CF500M-14-31
15. GASKET, GEARSHIFT COVER | CF500M-14-34
16. BOLT M6x35 | CF500M-2-10
17. WASHER 6.6x20x2 | CF500M-14-22
18. TORSION SPRING, DRIVEN SECTOR GEAR | CF500M-14-21
19. WASHER 13.5x22x1 | CF500M-14-20
20. DRIVEN SECTOR GEAR | CF500M-14-19
21. SHAFT, DRIVEN SECTOR GEAR | CF500M-14-18
22. WASHER, DRIVEN SECTOR GEAR | CF500M-14-17
23. DRIVEN SECTOR GEAR | X8M-24-23
28. SPRING, GEAR CONTACTOR | CF500M-14-10
29. GEAR CONTACTOR | CF500M-14-9
30. LIMIT WASHER | CF500M-14-11
31. SCREW T25 | CF500M-14-8
32. DRUM ASSY, GEAR SHIFT | X8M-24-32
33. BOLT COMP. SHIFT LIMIT | X8M-24-33
36. SPRING, LIMIT | CF500M-14-16
