F04-2 Deksel Midt
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

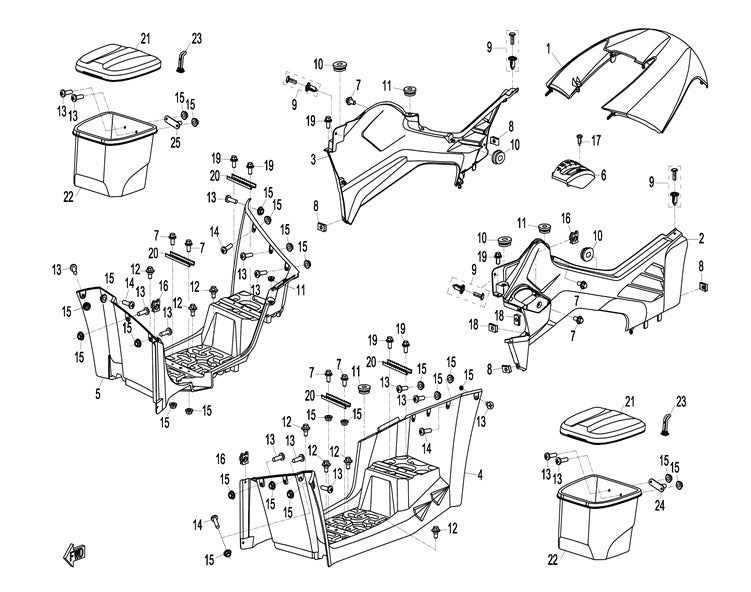

1. COVER AIR FILTER, ORANGE | X8K-04-02-01-01
1-1. COVER AIR FILTER, GREY | X8K-04-02-01-03
1-2. COVER AIR FILTER, WHITE | X8K-04-02-01-04
1-3. COVER AIR FILTER, BLUE | X8K-04-02-01-05
1-4. COVER AIR FILTER, CAMO | X8K-04-02-01-02
2. LEFT SIDE PANEL, ORANGE | X8K-04-02-02-01
2-1. LEFT SIDE PANEL, GREY | X8K-04-02-02-03
2-2. LEFT SIDE PANEL, WHITE | X8K-04-02-02-04
2-3. LEFT SIDE PANEL, BLUE | X8K-04-02-02-05
2-4. LEFT SIDE PANEL, CAMO | X8K-04-02-02-02
3. RIGHT SIDE PANEL, ORANGE | X8K-04-02-03-01
3-1. RIGHT SIDE PANEL, GREY | X8K-04-02-03-03
3-2. RIGHT SIDE PANEL WHITE | X8K-04-02-03-04
3-3. RIGHT SIDE PANEL, BLUE | X8K-04-02-03-05
3-4. RIGHT SIDE PANEL, CAMO | X8K-04-02-03-02
4. FOOTREST BOARD, LH | X8K-04-02-04
5. FOOTREST BOARD, RH | X8K-04-02-05
6. INDICATOR COVER, GEARSHIFT | X8K-04-02-06
7. BOLT M6x12 | CF500K-5-3
9. PUSH RIVET | 9060-040310
10. FIXING RUBBER BUSH | X8K-04-02-10
11. RUBBER COLLAR | CF500M-5-4
13. BOLT M6x16 | CF500K-5-20
15. NUT M6 | CF500EDK-01-24
16. CLAMP, NUT M6 | CF500K-5-9
17. BOLT | X8K-04-02-17
18. CLAMP ST4.2 | CF500K-5-11
19. BOLT M6x20 | CF500K-15-4
20. JAG, FOOTREST BOARD | CF500K-7-6
21. COVER, SIDE BOX | X8K-04-02-21
22. SIDE BOX | X8K-04-02-22
23. TIE BAND, SIDE BOX | X8K-04-02-23
24. LEFT BRACKET, SIDE BOX | X8K-04-02-24
25. RIGHT BRACKET, SIDE BOX | X8K-04-02-25
