Forside » F04-2 Midtdeksel Kort + Lang

Ansvarsfraskrivelse: Faktiske produktfarger kan avvike noe fra bildene som vises, på grunn av ulike skjerminnstillinger og lysforhold under fotografering.

F04-2 Midtdeksel Kort + Lang

Varenummer: 042MKL
(0)
29,00 kr inkl. MVA
På lager
Sendes vanligvis innen 24 timer

Klar til bruk rett ut av esken!

Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!

Har du spørsmål?

Ta gjerne kontakt

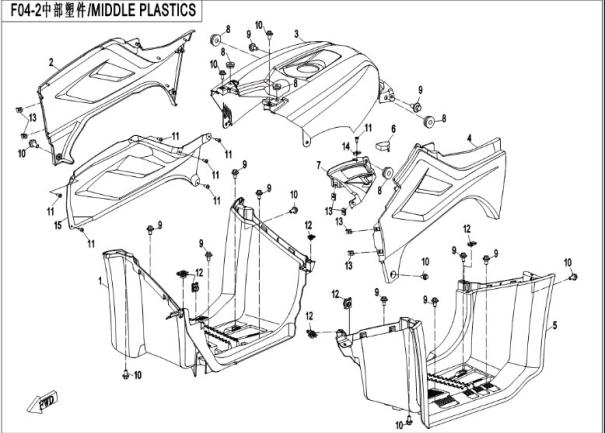

1. FOOTREST BOARD, RH | CF450K-04-2-1
1-1. FOOTREST BOARD, RH LONG | CF450K-04-2-1-1
2. SIDE PANEL, RH BLUE | CF450K-04-2-2
2-1.SIDE PANEL, RH BLACK | CF450K-04-2-2-1
2-2. SIDE PANEL, RH ORANGE | CF450K-04-2-2-3
2-3. SIDE PANEL, RH BLACK LONG | CF450K-04-2-2-5
2-4. SIDE PANEL, RH BLUE LONG | CF450K-04-2-2-6
2-5. SIDE PANEL, RH ORANGE LONG | CF450K-04-2-2-4
2-6. SIDE PANEL, RH, PEARL BLACK | CF520K-4-2-2
3. UPPER PANEL, FUEL TANK BLUE | CF450K-04-2-3
3-1. UPPER PANEL, FUEL TANK BLACK | CF450K-04-2-3-1
3-2. UPPER TANK, FUEL TANK ORANGE | CF450K-04-2-3-3
3-3.  TOP PANEL, FUEL TANK, PEARL BLACK | CF520K-4-2-3
4. SIDE PANEL, LH BLUE | CF450K-04-2-4
4-1. SIDE PANEL, LH BLACK | CF450K-04-2-4-1
4-2. SIDE PANEL, LH ORANGE | CF450K-04-2-4-3
4-3. SIDE PANEL, LH BLACK LONG | CF450K-04-2-4-6
4-4. SIDE PANEL, LH BLUE LONG | CF450K-04-2-4-4
4-5. SIDE PANEL, LH ORANGE LONG | CF450K-04-2-4-5
4-6. SIDE PANEL, LH, PEARL BLACK | CF520K-4-2-4
5. FOOTREST BOARD, LH | CF450K-04-2-5
5-1. FOOTREST BOARD, LH LONG | CF450K-04-2-5-1
6. LOCK COVER | CF450K-04-2-6
7. DECO COVER, GEARSHIFT BLUE | CF450K-04-2-7
7-1. DECO COVER, GEARSHIFT BLACK | CF450K-04-2-7-1
7-2. DECO COVER, GEARSHIFT ORANGE | CF450K-04-2-7-3
7-3. DECO COVER, GEARSHIFT, PEARL BLACK | CF520K-4-2-7
8. RUBBER COLLAR | CF500M-5-4
9. BOLT M6x14 | CF450K-04-2-9
10. BOLT M6x16 | CF450K-04-2-10
11. TAPPING SCREW | CF450K-04-2-11
12. NUT CHUCK M6 | CF450K-04-2-12
13. CLAMP ST4.8 | CF450K-04-2-13
14. CLAMP ST4.2 | CF450K-04-2-14
15. HEAT ISOLATION COVER | CF450K-04-2-15
