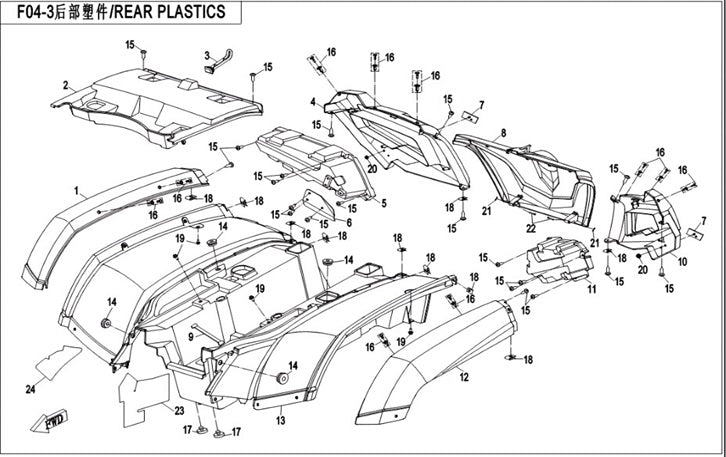

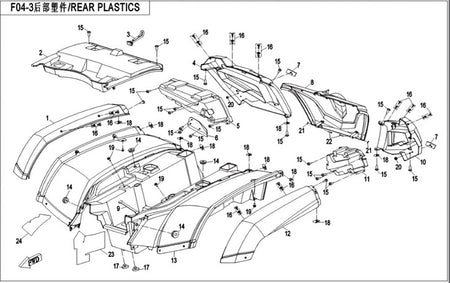

F04-3 Plastdeler-3
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt
1. REAR SIDE EDGE, RH | CF550-4-3-1
2. REAR TOP COVER | CF550-4-3-2
3. TIE BAND, TRUNK COVER | CF550-4-3-3
4. PANEL, RH TAIL LIGHT | CF550-4-3-4
5. GUARD, RIGHT TAIL LIGHT | CF550-4-3-5
6 HEAT INSULATOR, TIAL LIGHT COVER | CF550-4-3-6
7. REAR REFLECTOR | CF500K-24-19
8. REAR TRUNK COVER | CF550-4-3-8
9. BATTERY STRIP | CF550-4-3-9
10. PANEL, LH TAIL LIGHT | CF550-4-3-10
11. GUARD, LEFT TAIL LIGHT | CF550-4-3-11
12. REAR SIDE EDGE, LH | CF550-4-3-12
13. REAR FENDER, BLUE | CF550-4-3-13-1
13-1. REAR FENDER, BLACK | CF550-4-3-13-2
13-2. REAR FENDER, CAMO | CF550-4-3-13-3
13-3. REAR FENDER, ORANGE | CF550-4-3-13-4
14. RUBBER COLLAR | CF500M-5-4
15. TAPPING SCREW | CF550-4-3-15
16. PUSH RIVET | 9060-040310
17. RUBBER COLLAR | CF550-4-3-17
18. CLAMP ST4.2 | CF550K-4-1-12
19. BOLT M6x16 | CF550K-2-6
20. NUT M5 | CF550-4-3-20
21. COTTER PIN | CF550-4-3-21
22. PIN | CF550-4-3-22
23. HEAT INSULATOR (STOR), REAR FNDER | CF550-4-3-23
24. HEAT INSULATOR (LITEN), REAR FENDER | CF550-4-3-24
