F06 Støtdemper Bak
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

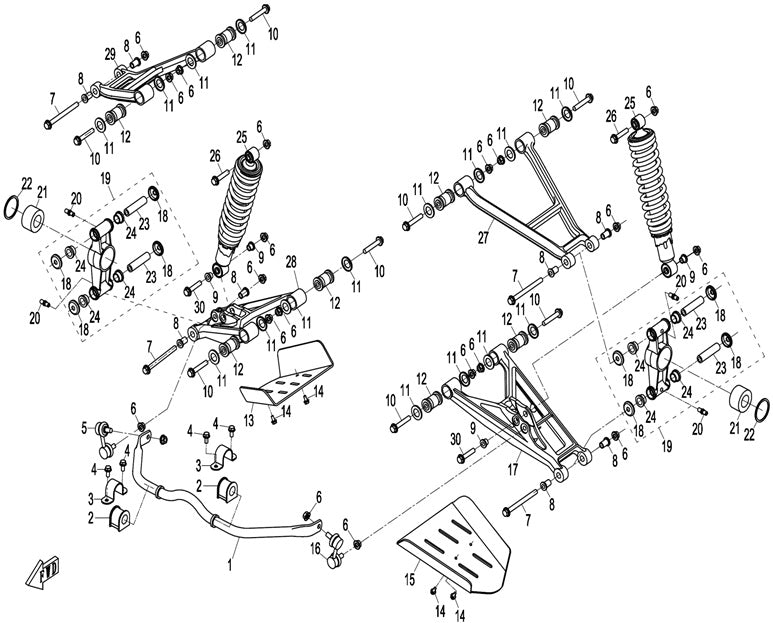

1. STABILIZER BAR | CF500K-17-8
2. RUBBER SUPPORT | CF500K-17-3
3. GLAND COVER | CF500K-17-2
4. BOLT M8x12 | CF500K-17-1
5. BALL PIN, RH | CF500K-17-27
6. LOCK NUT | CF500K-16-2
7. BOLT M10x1.25x10 | CF500K-17-12
8. BUSH, REAR ROCKER ARM | X7K-20-24
10. BOLT M10x1.25x70 | CF500K-16-18
11. CAP, BUFFERING COLLAR | CF500K-16-15
12. BUFFERING COLLAR | CF500K-16-14
13. REAR SUSPENSION FENDER, RH | CF500K-16-16
14. BOLT M6x16 | CF500K-2-1
15. REAR SUSPENSION FENDER, LH | CF500K-16-25
16. BALL PIN, LH | CF500K-17-9
17. REAR LEFT ARM (LOWER) | CF500K-17-11
19. HOLDER REAR WHEEL | CF500K-17-16-A
21. BEARING, HUB | CF500K-16-10
22. CIRCLIP | CF500K-16-7
23. CENTER SPACER | CF500K-17-14
24. BUSH | CF500K-17-18
25. REAR SHOCK ABSORBER | X8K-06-25
26. BOLT M10x1.25x50 | CF500K-16-21
27. REAR LEFT ARM (UPPER) | CF500K-17-10
28. REAR RIGHT ARM (LOWER) | CF500K-17-25
29. REAR RIGHT ARM (UPPER) | CF500K-17-26
30. BOLT M10x1.25x50 | CF500K-16-21
30-1. BOLT M10x1.25x70 | CF500K-16-18
