F10-1 Styret
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

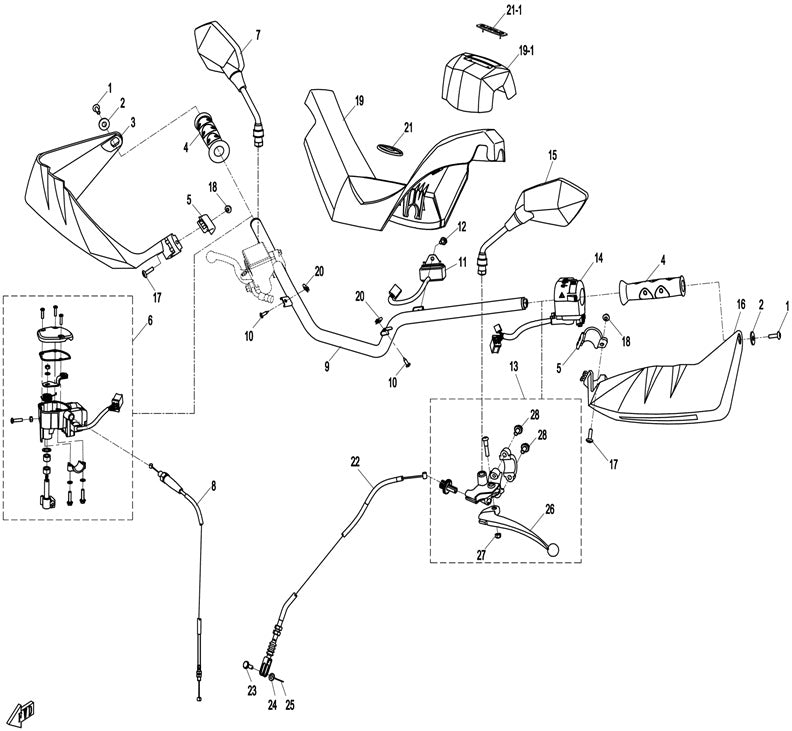

1. HEX SCREW M6x20 | X8K-10-01-01
3. HAND PROTECTOR, RH | X8K-10-01-03
4. GRIP | X7K-06-02-03
5. CLAMP, HAND PROTECTOR | X8K-10-01-05
6. HANDLEBAR SWITCH, RH | CF500K-4-16
7. REAR VIEW MIRROR, RH | X8K-10-01-07
8. CABLE, THROTTLE | X8K-10-01-08
9. HANDLEBAR | X8K-10-01-09
10. TAPPING SCREW ST4.8x16 | CF500K-5-22
11. SWITCH, WINCH | X8K-15-02-09
12. BOLT M6x10 | CF500K-5-3
13. BRAKE LEVER COMP. | CF500K-3-26
14. HANDLEBAR SWITCH (LH) | X8K-10-01-14
15. REAR VIEW MIRROR, LH | X8K-10-01-15
16. HAND PROTECTOR, LH | X8K-10-01-16
19. COVER, HANDLEBAR | X8K-10-01-19
19-1. COVER (OPTIONAL FOR WINDSHIELD)
21-1. SMALL CF LOGO (OPTIONAL)
22. CABLE, REAR BRAKE | X8K-10-01-22
23. SHAFT, PIN | CF500K-3-27
