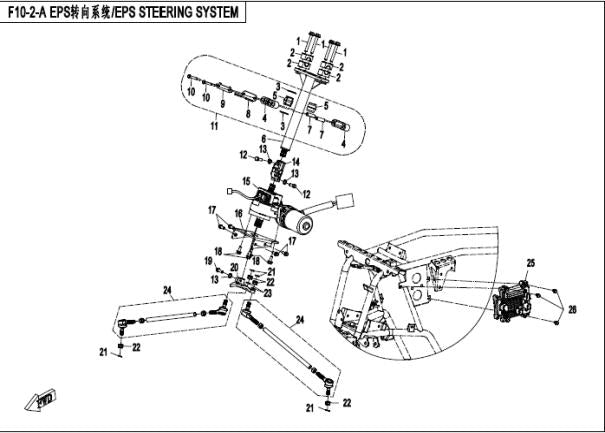

F10-2A Styresystem EPS
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt
1. BOLT M8x55 | CF450K-10-2A-1
2. ALUM. COVER, HANDLEBAR | CF500K-9-5
3. O-RING | CF450K-10-2-3
4. OUTER BUSH, STEERING SHAFT SPHERICAL | CF450K-10-2-17
5. INNER BUSH, STEERING SHAFT SPREHICAL | CF450K-10-2-18
6. EPS STEERING STEM ASSY | CF450K-10-2A-6
7. BUSHING | CF450K-10-2-16
8. LINKING PLATE ASSY | CF450K-10-2-15
9. LOCK WASHER |CF450K-10-2-14
10. BOLT M8x75 | CF450K-10-2A-10
11. BUSHING, STEERING STEM | CF450K-10-2-13
12. BOLT M8x30 | CF450K-10-2A-12
13. WASHER | CF450K-10-2A-13
14. UNIVERSAL JOINT, STEERING STEM | CF450K-10-2A-14
15. EPS DRIVER | CF550K-10-3-13
15-1. EPS DRIVER (NEW MODEL) |CF550K-10-3-13-1
16. EPS HOLDER COMP | CF450K-10-2A-16
17. BOLT M8x25 | CF450K-10-2A-17
18. BOLT M10x20 | CF450K-10-2A-18
19. BOLT M8 x 35 | CF450K-10-2A-19
20. EPS STEERING ARM ASSY | CF450K-10-2A-20
21. COTTER PIN | CF450K-10-2A-21
22. NUT M10x1.25 | CF450K-10-2-10
23. WASHER | CF450K-10-2A-23
24. BUSHING, STEERING STEM | CF450K-10-2-12
25. EPS CONTROLLER | CF550K-10-3-25
26. BOLT M6x30 | CF450K-10-2A-26
15. EPS DRIVER 15. EPS DRIVER (NEW MODEL)
