F10-3 EPS Styresystem
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt

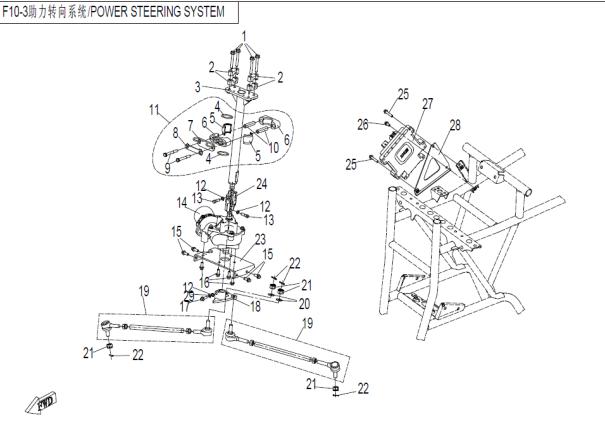

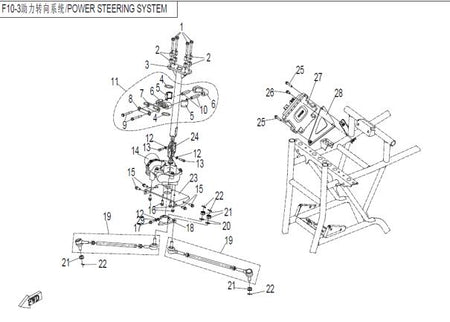

1. BOLT M8x55 | CF550K-10-3-1
2. ALUM COVER, HANDLEBAR | CF500K-9-5
3. EPS STEERING STEM ASSY | X8EPS-10-3-3
11. BUSHING, STEERING STEM | CF550K-10-3-28
12. WASHER | CF550K-10-3-23
13. BOLT M8x30 | CF550K-10-3-11
14. EPS DRIVER | CF550K-10-3-13
14-1. EPS DRIVER (New Model) | CF550K-10-3-13-1
15. BOLT M8x25 | CF550K-10-3-15
16. BOLT M10x20 | CF550K-10-3-16
17. BOLT M8x35 | CF550K-10-3-19
18. EPS STEERING ARM ASSY | X8EPS-10-3-18
19. STEERING TIE-ROD COMP | CF500K-9-23
20. WASHER | CF550K-10-3-20
21. NUT M10x1.25 | CF500K-9-18
22. COTTER PIN | CF550K-10-3-22
23. EPS MOTOR MOUNTING PLATE | X8EPS-10-3-23
24. UNIVERSAL JOINT, STEERING STEM | CF550K-10-3-12
25. BOLT M6x30 | CF550K-10-3-26
27. EPS CONTROLLER | X8EPS-10-3-27
28. PLATE EPS CONTROLLER | X8EPS-10-3-28
14. EPS DRIVER | CF550K-10-3-13 14-1. EPS DRIVER (New Model) | CF550K-10-3-13-1
