F15-1 Elektrisk System

Varenummer: ES1510
(0)
29,00 kr inkl. MVA
På lager
Sendes vanligvis innen 24 timer

Klar til bruk rett ut av esken!

Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!

Har du spørsmål?

Ta gjerne kontakt

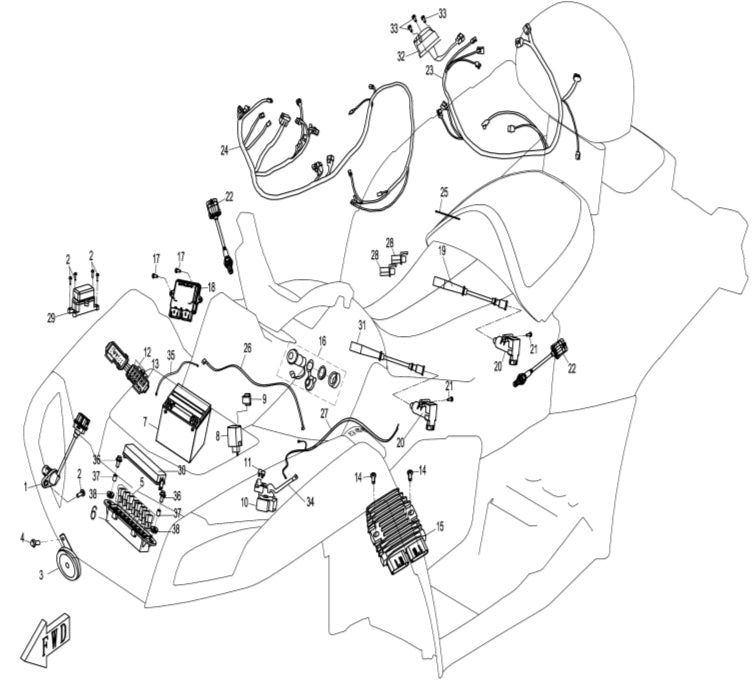

1. SENSOR, SPEED | X8K-05-24
2. SCREW M6x25 | CF500K-20-27
3. ELECTRIC HORN | CF500K-20-34
4. SCREW M6x16 | CF500K-24-6
5. AUXILIARY RELAY | CF500K-20-14
6. RELAY BOX | X8K-15-01-06
7. BATTERY YTX30 | BAT-YTX30
8. FLASHER | Z6K-26-32
9. CUSHION FLASHER | CF500K-20-33
10. STARTER RELAY | X8K-15-01-10
10-1. STARTER RELAY, NEW MODEL | X8K-15-01-10-1
11. FUSE, 30A | CF500K-20-30
13. FUSE, 10A | Z6K-26-21
14. SCREW M6x30 | CF500K-21-78

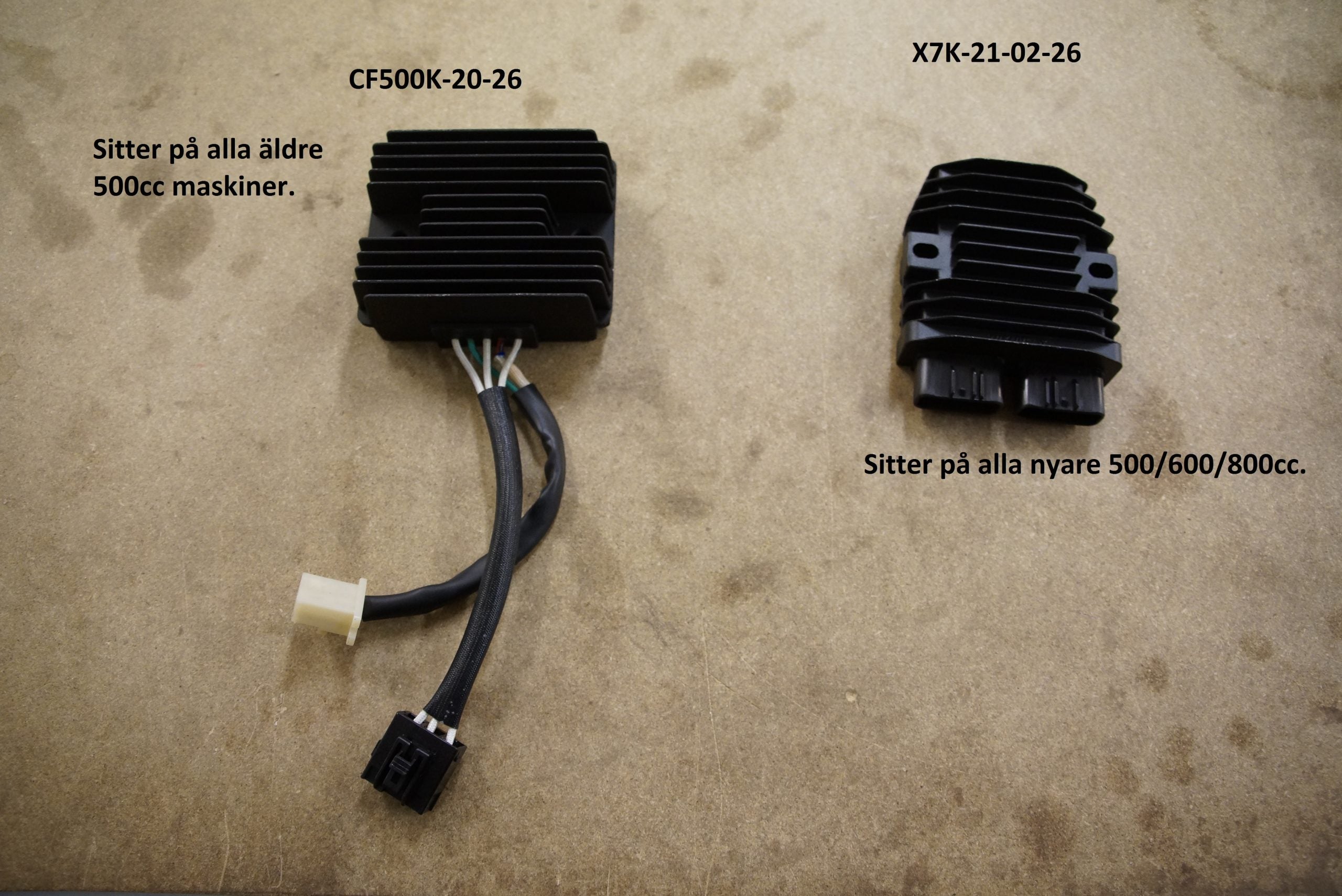

15. REGULATOR/RECTIFIER, EJ EPS | X7K-21-02-26
15-1. REGULATOR EPS | CF550K-15-2-18
16. POWER SOCKET COMP. | X8K-15-01-16
17. SCREW M6x16 | CF500K-2-1
18. ECU SPEEDSENSOR, FRONT WHEEL | X8K-15-01-18
18-1. ECU, SPEEDSENSOR ON DRIVESHAFT | X8K-15-01-18-1
18-2. ECU, SPEEDSENSOR ON DRIVESHAFT T3 | X8K-15-01-18-2
19. HIGH-TENSION CABLE 1 | X8K-15-01-19
20. IGNITION COIL | X8M-28-02
22. OXYGEN SENSOR | X8K-15-01-22
23. AUXILIARY CABLE | X8K-15-01-23
24. MAIN CABLE | X8K-15-01-24
24-1. MAIN CABLE-ECU | X8K-15-01-24-N
26. POSITIVE CABLE, STARTER MOTOR | X8K-15-01-26
27. NEGATIVE CABLE, STARTER MOTOR | X8K-15-01-27
28. DOIDE START | X8K-15-01-28
29. RELAY, CONTROL | X8K-15-01-29
30. COVER, RELAY BOX | X8K-15-01-30
31. HIGHT-TENSION CABLE 2 | X8K-15-01-31
32. POWER SOCKET, TRAILER | X8K-15-01-32
33. TAPPING SCREW ST5x30 | CF500K-5-22
34. POSITIVE CABLE, BATTERY | X8K-15-01-34
35. NEGATIVE CABLE, BATTERY | X8K-15-01-35
36. BOLT M8x16 | CF500K-24-6
38. RUBBER COLLAR | CF500M-5-4

15. REGULATOR/RECTIFIER, EJ EPS | X7K-21-02-26 ↓
