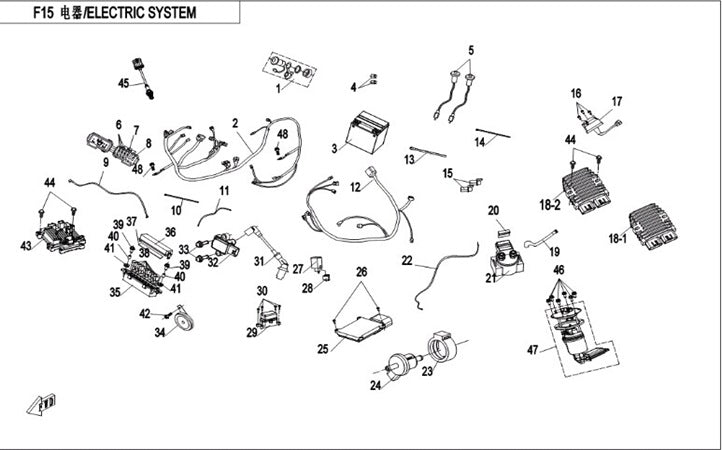

F15-2 Elektrisk System
Couldn't load pickup availability
Klar til bruk rett ut av esken!
Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!
Har du spørsmål?
Ta gjerne kontakt
1. POWER SOCKET | X8K-15-01-16
2. MAIN CABLE | CF550K-15-2-2
3. BATTERY 30A | BAT-YTX30
4. PLUG, PDA | CF550K-15-2-4
5. TIME ADJUST BUTTON | CF550K-15-2-5
9. NEGATIVE CABLE, STARTER MOTOR | X8K-15-01-27
11. NEGATIVE CABLE, BATTERY | CF550K-15-2-11
12. AUXILIARY CABLE, EFI | CF550K-15-2-12
15. DIODE, STARTER | X8K-15-01-28
17. POWER SOCKET, TRAILER | X8K-15-01-32
18-1. REGULATOR | CF550K-15-2-18
19. POSITIVE CABLE, BATTERY | CF550K-15-2-19
21. STARTER RELAY | CF550K-15-2-21
22. POSITIVE CABLE, STARTER MOTOR | X8K-15-01-26
23. IDEL VALVE RUBBER CAP | CF550K-15-2-23
24. AIR BY-PASS VALVE | X7M-27-11
25. ECU | CF550K-15-2-25
25-1. ECU T3, 40 km/t | CF550K-15-2-25-1
27. FLASHER | CF550K-15-2-27
29. CONTROL UNIT | CF550K-15-2-29
31. HIGH-TENSION CABLE | CF550K-15-2-31
32. INGITION COIL | X7M-27-09
34. ELECTRIC HORN | CF500K-20-34
35. RELAY BOX | X8K-15-01-06
36. COVER, RELAY BOX | X8K-15-01-30
38. AUXILIARY RELAY | CF500K-20-14
43. EPS CONTOLLER | CF550K-15-2-43
45. OXYGEN SENSOR | X7K-18-01-08
47. FUEL PUMP | X7K-17-07
