F15 Elektronisk System

Varenummer: 415150
(0)
29,00 kr inkl. MVA
På lager
Sendes vanligvis innen 24 timer

Klar til bruk rett ut av esken!

Alle verktøy leveres med nødvendige tilbehør og enkle, tydelige instruksjoner. Pakk ut og start prosjektene dine med selvtillit!

Har du spørsmål?

Ta gjerne kontakt

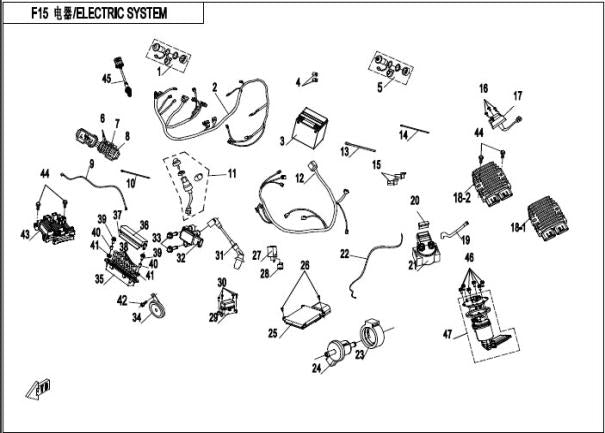

1. POWER SOCKET | CF450K-15-1
2. MAIN CABLE | CF450K-15-2
3. BATTERY | BAT-YTX30
4. PLUG, PDA | CF450K-15-4
5. USB POWER SOCKET | CF450K-15-5
6. FUSE, 15A | CF450K-15-6
7. FUSE, 10A | CF450K-15-7
8. FUSE, 5A | CF450K-15-8
9. NEGATIVE CABLE, BATERY | CF450K-15-9
10. TIE BAND | CF450K-15-10
11. LOCK KITS | CF450K-15-11
12. AUXILIARY CABLE, EFI | CF450K-15-12
13. CABLE CLIP | CF450K-15-13
14. TIE BAND | CF450K-15-14
15. DOIDE, STARTER | CF450K-15-15
16. SCREW M5x30 | CF450K-15-16
17. POWER SOCKET, TRAILER | X8K-15-01-32
18-1. REGULATOR EPS | CF550K-15-2-18
18-2. REGULATOR | X7K-21-02-26
19. POSITIVE CABLE, BATTERY | CF450K-15-19
20. CHIP-TYPE FUSE (30A) | CF450K-15-20
21. STARTER RELAY | CF550K-15-2-21
22. POSITIVE CABLE, STARTER MOTOR | CF450K-15-22
23. IDEL VALVE RUBBER CAP | CF450K-15-23
24. AIR BY-PASS VALVE | CF450K-15-24
26. SCREW | CF450K-15-26
27. FLASHER | CF450K-15-27
28. FLASHER CUSHION | CF450K-15-28
29. CONTROL UNIT | CF450K-15-29
30. BOLT M6x20 | CF450K-15-30
31. HIGH-TENSION CABLE | CF450K-15-31
32. IGNITION COIL | X7M-27-09
33. BOLT M6x25 | CF450K-15-33
34. ELECTRIC HORN | CF450K-15-34
35. RELAY BOX | X8K-15-01-06
36. COVER, RELAY BOX | X8K-15-01-30
37. RUBBER MAT, RELAY BOX COVER | CF450K-15-37
38. AUXILIARY RELAY | CF500K-20-14
39. BOLT M3x16 | CF450K-15-39
40. BUSHING | CF450K-15-40
41. RUBBER COLLAR | CF500M-5-4
42. BOLT M8x14 | CF450K-15-42
43. EPS CONTROLLER | CF550K-10-3-25
44. BOLT M6x30 | CF450K-15-44
45. OXYGEN SENSOR | X7K-18-01-08
46. BOLT M5x14 | CF450K-15-46
47. FUEL PUMP | X7K-17-07

18-2 :
